WinWedge® Pro with TCP-Wedge

Collect RS232 / COM or Network data into any Windows app or field​
Image shows data being input from scales, balances, gages, meters and other devices directly into Excel and other Windows applications. It is using WinWedge Pro software.

WinWedge Pro software logs data from RS232, USB, or Ethernet serial output scales and devices directly into Excel or any Windows application. It can also transmit commands, simulate keystrokes, and more.

Only $499 for a single PC license with free technical support
Discounted bulk pricing also available for any quantity.
Icon for WinWedge Pro
WinWedge Pro with TCP-Wedge
Send RS232/COM or Network data to any Windows app
Automated Data Collection

Eliminate manual data entry and streamline your data collection process. Send commands to control your devices on timed intervals, or with keyboard shortcuts or onscreen buttons.

Advanced Parsing & Formatting

The Pro version has more powerful data parsing, filtering and formatting capabilities giving you the freedom to customize data in countless ways, even with serial devices that have complex outputs.

Highly Configurable & Flexible

The Pro version has more configuration options for device data collection and control. It supports thousands of devices and connection methods including serial, USB (via RS232), Bluetooth (via virtual COM port), and local networks (TCP/IP).

Industry-tested Accuracy & Reliability

Device data is automatically transferred to your Windows application with 100% accuracy. Perfect for process control, quality control, pharmaceutical and other “mission critical” data.

WinWedge Pro Features

WinWedge Pro easily collects data from balances, scales, gages, meters, gages, sensors, and measuring devices and laboratory instruments.

Designed to be highly flexible, WinWedge can easily parse, filter and format your device data before inputting the data into any of your Windows applications. In other words, WinWedge is an easily customizable serial I/O device driver.

Additional Features:

  • Includes TCP-Wedge for Ethernet and IP network device data collection
  • Advanced data parsing, filtering and formatting options.
  • Support for binary as well as ASCII data,
  • Support for up to 100 serial ports and 10,000 network IP ports.
  • More advanced DDE options
  • Logs device data to files as well as to Windows applications
Wondering how WinWedge can help with your data transfer and automation needs?

Compatible Devices

WinWedge Pro is compatible with a wider range of devices than WinWedge Standard. It supports devices with longer and more complex data output, and supports network/Ethernet-connected devices along with RS232 and USB. WinWedge Pro also offers more control options, and can handle binary, hexadecimal, and ASCII output.

  • Balances & Scales
  • Meters
  • Gauges
  • Calipers
  • Sensors
    Icon for TCP-Wedge

    TCP-Wedge®

    Collect data from networked devices

    WinWedge Pro comes with TCP-Wedge, which is designed to collect data from networked devices directly into Excel or any Windows application.

    TCP-Wedge is nearly identical in features to WinWedge Pro. The key difference is that instead of configuring a COM port connection, TCP-Wedge allows for the selection of an IP address and port number – in both Client and Server modes.

    Like WinWedge Pro, TCP-Wedge supports powerful DDE capabilities to allow the user to set up sophisticated data collection and device control interfaces with Excel, Access and other DDE-capable applications.

    Diagram showing serial devices such as a scale or gauge) connected to a network and a PC running TCP-Wedge pulling data from those devices into a Windows application.

    WinWedge Pro features + Network connectivity

    Connect to any IP-based balance, scale or measuring instrument and the data is automatically transferred to MS Excel or your other Windows applications in real-time.

    Part of the WinWedge Pro bundle

    It also supports all the advanced features of WinWedge Pro including sophisticated device data parsing, filtering and formatting, full 2-way (input/output) network communication to control your devices across your IP network.

    Icon for TCP-Wedge

    +

    Use with TCP-Com® or a serial device server

    If you have network-connected serial devices via our TCP-Com software or a hardware serial device server (i.e., a Terminal Server), you can use TCP-Wedge to pull the data from those devices directly into Windows applications. Networked data will appear as local data to Windows.

    Easy Setup

    Select COM port or network settings.

    WinWedge & TCP-Wedge connection options.

    Connect your device to your PC or to a network connection. Then, use the Port Settings window to define these connections, i.e. COM port number or IP address.

    Preview & define the data structure.

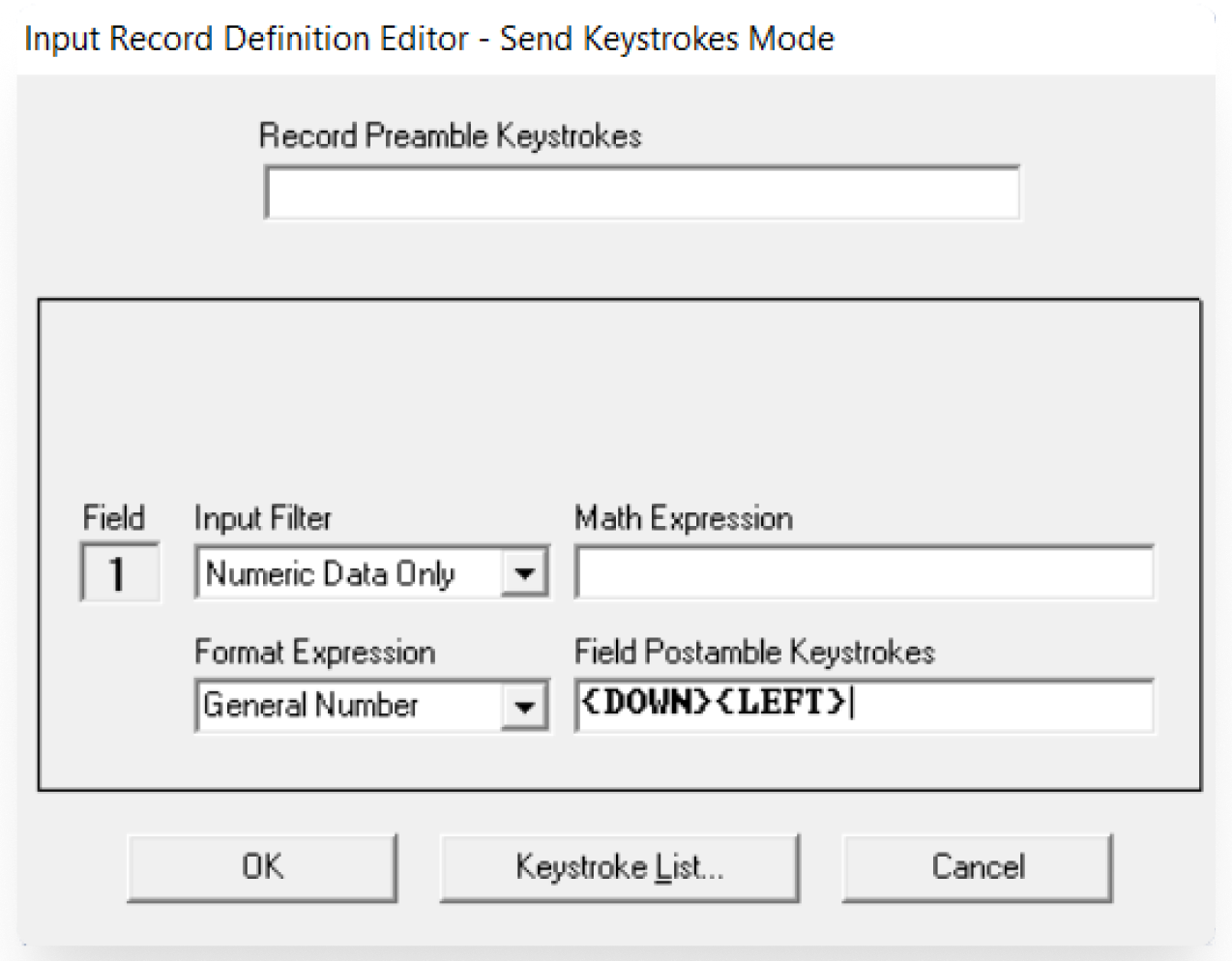

    WinWedge Pro record definition editor.

    WinWedge Pro has more options to parse, filter, and format your data, including:

    • Math functions & binary
    • Support for up to 100 COM or 10,000 network ports
    • More device prompting and control options
    • More DDE options

    Choose your transfer method and activate!

    Data sent to columns in Microsoft Excel.

    Select how you want to send the data (Keystrokes Mode, DDE Mode, or Log to Disk), specify your target app or file, and activate WinWedge.
    Watch as the data from your device appears anywhere you want. You can send the device data directly into a chart or use Excel’s built-in functions to peform real-time analysis.

    Feature List: WinWedge Standard vs. Pro Versions

    WinWedge Pro is compatible with more devices than WinWedge Standard and offers more powerful data parsing, formatting, filtering, and control features.

    Supported connection types WinWedge Standard WinWedge Pro
    Serial Devices (e.g., RS232, RS485)
    USB devices with virtual COM port drivers (RS232 via USB)
    TCP/IP (network) devices
    Maximum number of simultaneous connections
    16
    100
    Support for high-speed 16550 UARTs and all IRQs
    Support for up to 115,200 baud communications
    Preview and test your device configuration WinWedge Standard WinWedge Pro
    Preview the raw data output from your device
    A powerful Serial Data Analyzer feature allows you to preview serial data and adjust communications settings. Customize parameters such as baud rate (110-115,000); data bits (5, 6, 7, 8); stop bits (1 or 2); parity (even, odd, mark, space, or none); and flow control (hardware or software).
    Create virtual devices
    Activate in Virtual Instrument Mode to create a virtual device.
    Resize the Analyze window for long data records
    Allows you to view long data records in the Analyze Window.
    Transfer data to any Windows app or form WinWedge Standard WinWedge Pro
    Transfer data via keystrokes to any Windows application
    Send data to any windows program directly to the location of your cursor or a selected area.
    Transfer data via Dynamic Data Exchange (DDE) in supported Windows applications
    Transfer data through the background to any Windows program that accepts DDE commands, such as Microsoft Excel and Access.
    Automatically Update a Chart in Excel
    Log data down a column or row in Excel and watch your graph update automatically.
    Insert data into an Access form or table
    Automatically send device data to a specific form field in Access, even if the user doesn’t have it selected.
    Selectively ignore fields and filter numeric data
    Input only the data you need, ignoring the rest.
    Split data into multiple fields
    Format incoming serial data before passing it on to another app, tailoring it to appear exactly as needed by the receiving application.
    Send additional keystrokes to your application
    Define keystrokes like “Enter” or “Tab” to be sent to your application along with your device’s data.
    Date and time stamping
    Place date and time stamps directly in your serial input data.
    Log data to a background file while working
    Collect data to a file in the background while another program is in the foreground.
    Control your device from your PC WinWedge Standard WinWedge Pro
    Create onscreen buttons to send commands
    Configure up to 20 buttons with specific commands for your device.
    Automatic data acknowledgement
    Have WinWedge send a string back to the serial device after receiving each data record.
    Timer-controlled output
    Configure a timer to automatically send a command, Toggle the DTR line, or issue a break signal.
    Customize hotkeys / keyboard shortcuts to control WinWedge
    Define up to 50 hotkeys to transmit commands or control common WinWedge functions.
    Assign multiple functions to a single hotkey
    Advanced features WinWedge Standard WinWedge Pro
    Filter out or translate characters before input or before transfer
    Translate or remove specific characters either before WinWedge processes them or before your destination receives them from WinWedge.
    Select input and output buffer sizes
    Supports 128 bytes to 32K buffer size.
    Advanced data parsing, filtering, and formatting
    Advanced techniques to give you ultimate control of sophisticated data structures.
    Apply powerful math functions
    Apply standard and many advanced math functions to incoming serial data.
    Translate binary or HEX data to ASCII
    Communicate with devices that send data in Binary or Hex format.
    Tailor data with powerful formatting functions
    Format incoming serial data before passing it on to another program. Custom-tailor your data to appear in the exact format required by the receiving application.
    Advanced keystroke macro insertion
    Add additional keystrokes or keystroke macros before, after, or within your serial input data. Keystroke macros allow you to control where and how serial data appears in the target application program in Keystroke Mode.
    Add delay before and after keystrokes
    Pause between keystrokes and data to allow for the processing time of your application.
    Send keystrokes to a DOS or terminal server
    Send keystrokes directly into DOS windows or applications running through terminal servers.
    Flexibility with Dynamic Data Exchange (DDE) WinWedge Standard WinWedge Pro
    Access to full set of DDE commands
    Precise control over all serial I/O functions directly from within your other Windows application programs.
    Send a DDE command to your application
    Define a single DDE Command to be sent to your application when WInWedge receives a new record.
    Send multiple DDE commands to applications
    Configure “Record Preamble” and “Field Postamble” DDE Commands to be sent to your application each time WinWedge receives a reading.
    Create serial output buffers
    Place a Serial Output Buffer directly in any application that supports DDE. For example, you can turn a cell in a spreadsheet into a serial output buffer where anything you type in that cell would be sent out through the serial port to your device.
    Included helper applications WinWedge Standard WinWedge Pro

    WinWedge is trusted by thousands of major companies worldwide.

    Our Industries

    Laboratories & Scientific Research

    Quality Control

    Medical Devices

    Cannabis Compliance

    Farming & Fishing

    Process Control

    Food Processing

    Manufacturing Automation

    Government & Military

    Engineering

    User Application Notes

    WinWedge and WinWedge Pro are used to collect all sorts of data across many industries.

    Our Users

    TALtech’s software is being used by thousands of major companies worldwide.
    Logo wall featuring Dell, Harvard University, PepsiCo, Sartorius, Pfizer, Eli Lilly, Procter & Gamble, Nestle, Los Alamos National Laboratory, Space X, NASA, and Hyatt.

    What our users are saying

    We offer an unconditional 90-day guarantee and lifetime free technical support with every software purchase.

    Artwork graphic depicting a seal certifying a 90-day guarantee with lifetime support

    Get WinWedge® Pro with TCP-Wedge today​

    Only $499 for a single PC license.

    Discounted multi-license/PC pricing also available for any quantity.

    Demos & purchases come with free, unlimited technical support.

    Licensing

    WinWedge is licensed on a per-workstation / user basis.

    Bulk pricing is available for multi-licenses used on multiple PCs or by concurrent users when installed on a server.

    Support

    Not only is WinWedge extremely easy to use, it also comes with free & unlimited technical support by phone or email. All software comes with extensive support resources.

    Compatibility

    This software can be installed on all versions of Windows with minimal system requirements.

    WinWedge FAQ (Frequently Asked Questions)

    Yes. It is extremely easy to use! The configuration process is fully menu driven and has complete, context sensitive, on-line help. You can easily customize all input to your exact specifications. Once you see how easy it is to use WinWedge, you will never again take data readings by hand!

    Yes, we offer two different types of upgrades: software upgrades and license upgrades. A software upgrade is an upgrade from a lesser version number to a newer version number (ex: WinWedge Pro 3 to WinWedge Pro 4). These are generally available for a reduced cost and can be ordered online. You must have a valid serial number for the older license in order to process the upgrade.

    A license upgrade is an upgrade to a higher number of allowed PCs (ex: Single to Team license). These are always available for just the difference in cost between the two licenses. Contact us to get a quote or place an order.

    WinWedge Professional has many advanced features and benefits, including the ability to collect data from networked and internet devices (not just serial!), log data directly to a disk file, and allows for more powerful parsing techniques and math functions.

    WinWedge Professional also bundles together many of our popular software products into one package, including TCP-Wedge, TCP-Com, File-Wedge, and more.

    WinWedge transfers data to other applications by either entering it in the highlighted text field or cell (just like typing on a keyboard) or by passing the data using DDE (Dynamic Data Exchange).

    The keystroke method is extremely simple. Serial data just “pops” into your application as if it were being typed in! This method is the most popular as it is so easy to use.

    The DDE method enables to you to transfer data in the background and create extremely sophisticated data acquisition and device control interfaces.

    WinWedge also lets you add additional keystrokes or DDE commands and, if your application supports it (like Excel) you can even automate real-time data charting and analysis.

    Yes, we provide a demo version of WinWedge Pro for testing & evaluation purposes only.

    All the features of the Pro version are available in this demo, including TCP-Wedge. Limitations include:

    • Non-commercial use only
    • Permanent display of splash window
    • Data transfer sessions are limited to 10 minutes per session; continued use requires closing and re-activating
    • Expires completely after 30 days, requiring unlock purchase

    As the demo is for evaluation purposes only, it may not be transferred or distributed to anyone else, nor used in any commercial application.
